ST424A Cabinet Oven

Posted on August 10, 2022 by jpwdesign

The ST424A industrial cabinet oven is designed to operate at 650F maximum temperature. Standard features include internal circulation fan, CRS exterior painted machine gray, aluminized interior, UL listed control panel, and electronic temperature controller.

INSIDE DIMENSION

48”W x 24”D x 48”H

TEMPERATURE RANGE

Up to 650°F

UL LISTED CONTROL ENCLOSURE

JPW Industrial Ovens & Furnaces sets itself apart from the competition by UL Listing every control enclosure on all industrial ovens. Added comfort without the cost!

AIRFLOW

Reduce cold spots and count on even airflow across the chamber. Our Industrial Ovens come with airflow in a variety of selectable patterns.

TEFC CIRCULATION MOTOR

JPW Design uses Totally Enclosed Fan Cooled (TEFC) motors on all of our industrial ovens. TEFC motors are made for harsh conditions and are built to last.

Standard Features

UL Listed control enclosures
Designed to NFPA 86
TEFC motors (Totally Enclosed Fan Cooled) — For harsh environments and long life
Controls — All digital, microprocessor, thermocouple input temperature controller
Circuit breakers on motor in lieu of fusing — Easy troubleshooting and no fuses required for motors (IN US ONLY)
Oven on switch — Illuminated
Heat on switch — Illuminated
Batch Timer; Shuts heat off at the end of a timed cycle (on models with single set point controllers)
SSR or SCR power controllers
High volume recirculation blowers or fans
Pressure differential switches — In the event of the loss of air, the heating system will shut down
8-pound density mineral wool board insulation
Voltage-specific
Aluminized interior
Painted exterior
Incoloy sheathed heating elements
Ceramic cloth with stainless core
Pressure relief latches

Optional Features

Forced exhaust packages
Gas fueled — natural or propane
Programmable controllers
Recorders
Solvent rated
Door switch
Shelves
Proportional dampers
Inert gas purge & process
Viewing window
Interior light
Stainless interior
Stainless sealed interior
Wall ports
Cascade controlling (2 loops, typically one air and one product)
Class 1, Div 2
24/7 timer
Audible and visible alarm indicators
Vertical lift door
Custom designs
Disconnects
Pass-through doors
Stand
Extra KW

And, of course, every one of JPW’s ovens comes with unmatched customer service. When you purchase one of JPW’s products, you receive more than just an industrial oven or furnace. You receive our commitment to quality and service – always being available to answer any questions you may have before and after the purchase.

ST323 Cabinet Oven

Posted on June 30, 2022 by jpwdesign

JPW’s cabinet ovens are designed to meet your most demanding needs. Our ST323 industrial cabinet oven is strongly relied upon in a range of industries including pharmaceutical, chemical, healthcare and technology. Its heavy-duty construction and exceptional performance along with a variety of airflow patterns and optional equipment provide the right solution for your heat processing requirements and are designed for easy loading and unloading.

The ST323 industrial oven is a low-temperature oven used for curing, preheating, drying, aging, and testing. This specific model oven is fully-insulated all the way around and can be safely placed on any surface for use. Stands for this oven are also available to purchase.

TEMPERATURE RANGE

Up to 650°F

APPLICATIONS

Curing
Mold preheating
Drying
Aging
Electronics
Shelf Life

DIMENSIONS

Internal: 36W x 24D x 36H
External: 67W x 35D x 63H

EXTERIOR

Painted Machine Gray

INTERIOR

Aluminized Steel

CIRCULATION SYSTEM

One 18″ 4 blade fan generating 1200 cfm
Direct drive motors
Totally Enclosed Fan Cooled (TEFC)
Custom-built airflow

DOORS

Double Door
Pressure relief latches

HEATING SYSTEM

9 KW of heat
Seamless tubular elements
Controlled by solid state relays

ELECTRICAL

Single or Three Phase
High limit for safety

CONTROL PANEL

Main power switch
Heat on/off switch
Controller

Optional Features

Stand
Disconnect box
Shelving
Forced exhaust
Recorder
Stainless interior
Controller

HT333 Cabinet Oven

Posted on June 14, 2022 by jpwdesign

This HT333 electrically heated cabinet oven has a temperature range of up to 1400 °F. This model can be used in multiple industries and applications such as heat treating, curing, stress relieving, and tempering. One specific application it is used for is for heat-treating metal valves for the gas and oil industry, allowing for reconditioning of valves in the field. This model also has selectable options such as programmable control, digital recorder, forced exhaust and many others that allows the oven to monitor heat levels and maintaining complete control.

INSIDE DIMENSION

36”W x 36”D x 36”H

TEMPERATURE RANGE

Up to 1400°F

UL LISTED CONTROL ENCLOSURE

JPW Industrial Ovens & Furnaces sets itself apart from the competition by UL Listing every control enclosure on all industrial ovens. Added comfort without the cost!

AIRFLOW

JPW Industrial Ovens & Furnaces come with airflow in a variety of selectable patterns to reduce cold spots provide consistent airflow.

TEFC CIRCULATION MOTOR

JPW uses Totally Enclosed Fan Cooled (TEFC) motors on all of our industrial ovens. TEFC motors are made for harsh conditions and are built to last.

Standard Features

UL Listed control enclosures
Designed to NFPA 86
TEFC motors (Totally Enclosed Fan Cooled) — For harsh environments and long life
Controls — All digital, microprocessor, thermocouple input temperature controller
Circuit breakers on motor in lieu of fusing — Easy troubleshooting and no fuses required for motors (IN US ONLY)
Oven on switch — Illuminated
Heat on switch — Illuminated
Batch Timer; Shuts heat off at the end of a timed cycle (on models with single set point controllers only)
SSR or SCR power controllers
High volume recirculation blowers or fans
Pressure differential switches — In the event of the loss of air, the heating system will shut down
8-pound density mineral wool board insulation
Voltage-specific
Stainless interior
Painted exterior
Incoloy sheathed heating elements
Ceramic cloth with stainless core
Pressure relief latches

Optional Features

Forced exhaust packages
Gas-fueled — natural or propane
Programmable controllers
Recorders
Solvent rated
Door switch
Shelves
Proportional dampers
Inert Gas purge & process
Stainless sealed interior
Wall ports
Cascade controlling (2 loops, typically one air and one product)
Class 1, Div 2
24/7 timer
Audible and visible alarm indicators
Vertical lift door
Custom designs
Disconnects
Pass-through doors
Stand
Extra KW

What is a lab/bench industrial oven?

Posted on May 13, 2022 by jpwdesign

Although smaller than most of our industrial ovens, JPW’s lab/bench ovens are mighty, producing high heat for drying, curing, testing, baking, finishing, aging, and other process needs.

There are a variety of industries that regularly use the lab/bench ovens, including aerospace, medical, solar, metal-finishing, pharmaceutical, and education.

Lab/bench ovens are usually used in the industrial setting when small batches of product are needed or the size of the workspace is limited. These ovens are often positioned on a table or bench but can also be floor-mounted depending on the setting. Lab/bench ovens often use trays to simplify the heating process.

Lab/Bench Oven Standard Features

JPW’s lab/bench ovens are proudly made here in the USA. These ovens come with several standard features, including a temperature range of up to 500°F. In addition, JPW Industrial Ovens & Furnaces sets itself apart from the competition by UL listing every control enclosure on all industrial ovens. To reduce cold spots and count on even airflow across the chamber, JPW’s lab/bench ovens come with airflow in various selectable patterns. We also use TEFC (Totally Enclosed Fan Cooled) motors on all of our lab/bench industrial ovens. TEFC motors are made for harsh conditions and are built to last.

Lab/Bench Oven Optional Features

Some of JPW’s lab/bench oven optional features include forced exhaust packages, programmable controllers, recorders, shelves, a door switch, proportional dampers, viewing window, wall ports, cascading controls and a 24/7 timer.

For a complete list of our lab/bench oven standard and optional features, click here.

Why Choose JPW for Your Lab/Bench Oven Needs?

In addition to an excellent, American-made product, when you purchase one of our industrial ovens, you receive more than just an industrial oven. You receive unmatched customer service and our commitment to quality and service. Contact us today for your lab/bench industrial oven needs.

ST333 Cabinet Oven

Posted on May 6, 2022 by jpwdesign

The ST333 cabinet oven has been specially crafted by JPW to be thicker, stronger and more durable than competing models. It is available in both low-heat and high-heat models as well as electrical or gas heating. Cabinet ovens can be used for various applications including curing and drying and with proper use and required maintenance, the ST333 can last a lifetime.

ST333 Oven Information

INSIDE DIMENSION

36”W x 36”H x 36” D

TEMPERATURE RANGE

Up to 650°F

UL LISTED CONTROL ENCLOSURE

JPW Industrial Ovens & Furnaces offers UL Listings for all electrical enclosures. This feature sets itself apart from the competition adding comfort without the cost.

AIRFLOW

You can count on even airflow across the chamber and reduction of cold spots. Our Industrial Ovens come with airflow in a variety of selectable patterns.

TEFC CIRCULATION MOTOR

JPW uses Totally Enclosed Fan Cooled (TEFC) motors on all of our industrial ovens. TEFC motors are made for harsh conditions and are built to last.

ST333 Standard Features

UL Listed control enclosures
Designed to NFPA 86
TEFC motors (Totally Enclosed Fan Cooled) — for harsh environments and long life
Controls — all digital, microprocessor, thermocouple input temperature controller
Circuit breakers on motor in lieu of fusing — easy troubleshooting and no fuses required for motors
Oven on switch — illuminated
Heat on switch — illuminated
SSR or SCR power controllers
High volume recirculation blowers or fans
Pressure differential switches — in the event of the loss of air, the heating system will shut down
8-pound density mineral wool board insulation
Painted exterior
Incoloy sheathed heating elements
Ceramic cloth gaskets
Pressure relief latches
Aluminized Interior

ST333 Optional Features

Forced exhaust packages
Programmable controllers
Recorders
Door switch
Shelves
Proportional dampers
Viewing window
Interior light
Wall ports
Cascade controlling (2 loops, typically one air and one product)
24/7 timer
Audible and visible alarm indicators
Custom designs
Disconnects
Pass-through doors
Stand
Extra KW

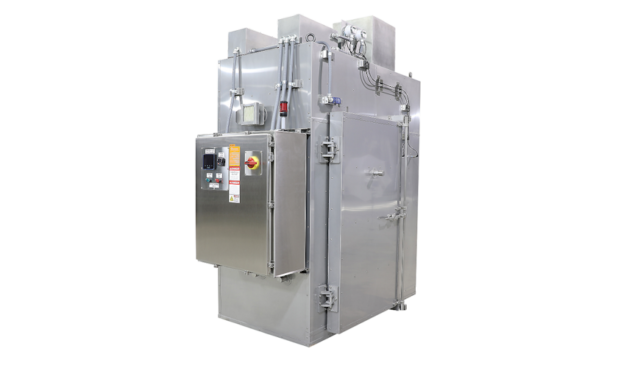

Industrial Clean Room Ovens

Posted on April 21, 2022 by jpwdesign

Clean room ovens create a sterile environment for hygienic and sterile process applications in manufacturing. The pharmaceutical and medical industries take the lead in the need and request for these types of ovens. Clean room ovens, also known as dry-heat sterilizing ovens, are used to cure, dry, sterilize and depryrogenate.

Recently, JPW customized a clean room oven for a pharmaceutical pill manufacturer. They requested a dry-heat sterilizer for their specific project.

“Clean room ovens have different classifications,” states Mike Jameson with JPW Industrial Ovens and Furnaces. “The type we typically produce are Class 100 clean room environment ovens for processes where eliminating particle contamination is required. We also see more requests for these types of ovens than we have in the past.”

Clean Room Oven Standard Features

JPW offers various size, cycle, and temperature option requirements to meet your clean room industrial oven needs. Our clean room ovens are available in multiple configurations, including lab, bench, walk-in, cabinet, and continuous process. JPW’s clean room ovens can be customized for your specific needs and will meet or exceed Class 100 air standards. Standard features of our clean room ovens include:

Construction: corrosion-resistant stainless-steel interior and exterior, fully sealed interior and exterior, adjustable shelves
Filtration: two heat-resistant HEPA filters
Temperature: up to 500°F with uniform heating
Door: fully-sealed adjustable door hinge with lever-actuated door latch and silicone gasket
Controls: user-friendly, control panel with large LED display or PLC
Air Flow Patterns: vertical or horizontal

Customized Clean Room Ovens vs. Standard Clean Room Ovens

While JPW can customize your clean room oven, we also offer a standard line of stock ovens that may meet your industrial needs.

“The turnaround time for a standard oven we have in stock with modified customization is about 4-6 months, while a completely custom-built clean room oven can take six months or more,” adds Jameson. “Prices for a small clean room oven range from $125-150,000.”

If you need a clean room industrial oven, don’t hesitate to contact JPW. Let us help you determine what solution is right for you. Whether you need a model from our stock line or a customized oven, JPW can meet your needs.

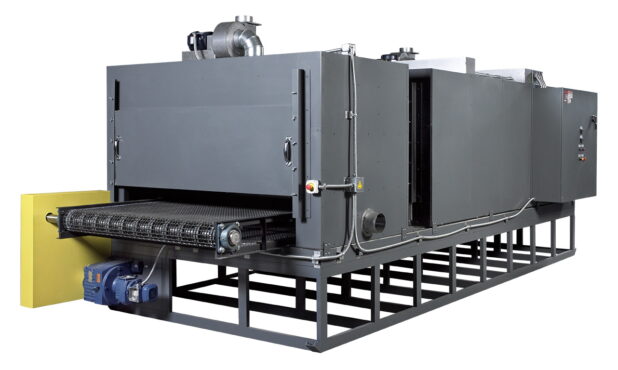

What Are Continuous Process (Conveyor) Ovens?

Posted on April 7, 2022 by jpwdesign

Continuous Process Ovens (or Conveyor Ovens) are batch ovens that repetitively operate with a specific product traveling through them. It can easily be compared to an automated assembly line. The conveyor belt moving through the oven has a job to do and keeps on doing that job until the product is complete. This type of oven can produce a high volume, uniform product due to a consistent, regulated temperature as it passes through each chamber or zone.

Mike Jameson with JPW Industrial Ovens & Furnaces indicates that almost every continuous process oven that goes out our door needs some customization and is project-based driven.

Since customization tends to be the standard, when one is needed, JPW recommends planning ahead.

“In the conveyor oven world, these ovens are project, product and process-specific,” Jameson adds. “These ovens are used to do one particular job whether it is curing or drying, for example, and that is it. A typical life cycle of a product used in a continuous process oven is about five years, some ten. So when considering the purchase, I always ask what the desired outcome of the oven is, what material will be treated, and how will the oven fit in the project’s manufacturing process.”

After these initial questions are answered, Jameson says the oven design, temperature requirements, and type of belt material can be easily identified.

Types of Applications and Ovens

These types of ovens can be used for various applications, including tempering, annealing, curing, pre-heating, drying, heat-shrinking, and heat-forming. They are also used in the aerospace, defense, fiber optics, wood and metal finishing, plastics, rubber, industrial processing, pharmaceutical, electronics, printing, and automotive industries.

Types of continuous ovens include:

Flat conveyor belt
Chain conveyor
Ferris wheel
Carousel
Overhead trolley
Serpentine
Chain-on-edge
Spindle
Slat type
Strip cure
Print plate
Pusher ovens
Dog beams
Wash-draw furnaces
Multi-tier

With over 100 years of combined experience serving industrial markets with innovative oven products, design solutions, and competitive services, when planning the purchase of a continuous process or conveyor oven, let JPW help. We are skilled at finding solutions and crafting each oven to suit your unique needs while keeping you competitive in the marketplace.

Gerry Retires

Posted on August 16, 2021 by jpwdesign

Gerald “Gerry” Mitcheltree recently retired from JPW Industrial Ovens and Furnaces after working with the company for 14 years as a fabrication supervisor. On his last day, Friday, August 6^th, his fellow co-workers and supervisors organized a much-deserved send-off.

When asked what he will miss most about JPW, he joked, “I will miss arguing with Briana and Chelsea the most.” Gerry quickly added that JPW has a good atmosphere and great people.

A lifelong Williamsport resident, Gerry and his wife raised four children in the area and have been blessed with eleven grandchildren.

While he has no specific retirement plans at the moment and will take it day by day, Gerry is looking forward to spending time with his family and just simply enjoying his second act.

An Uptick in Industrial Oven Requests for Electric Vehicles

Posted on June 28, 2021 by jpwdesign

JPW has been designing and manufacturing ovens and furnaces for start-up companies in the electric vehicle industry for several years. Though lately, the requests have been more frequent and more specific. Mike Jameson with JPW Ovens Furnaces believes he knows the reason why this is the case.

Jameson says, “Mainstream automakers from around the globe are noticing that electric vehicles are the future. While the smaller start-ups have been researching, testing, and creating electric vehicles for years, the well-known automakers want to make sure their hats are tossed in the ring as they notice the demand from potential customers steadily increasing.”

The two types of ovens that are being requested most often are continuous process and batch. Jameson sees oven and furnace needs geared toward battery technology and research and electric motor processing testing. Requests vary from small-batch ovens to large continuous process ovens that expand to over 40 feet long.

Jameson adds, “Mainstream brands moving into the field are looking to have their ovens in a position to conveyorize so they can do more volume to supply products for assembly lines. They may begin using a batch oven but work their way up to a continuous process oven.”

When electric motor processing testing is needed, Jameson finds the ovens are being used to finish curing the product; when electric vehicle companies are looking requesting ovens for battery technology, ovens are typically used to test a battery’s stability in various temperatures without failing.

Jameson said he envisions the first true wave of electric vehicles coming to market soon. They will continue to improve as more people switch from the typical gas-operated vehicle to electric. He adds, “It is a fun time in history right now, and JPW is excited to be a part of it.”

Industrial Oven Manufacturers: One of the Unsung Heroes During the Pandemic

Posted on February 22, 2021 by jpwdesign

JPW Industrial Ovens and Furnaces has always been available for customers when they need us most. This is especially true during a global pandemic.

Since last March, we have received many customer letters, emails, and phone calls requesting ovens to be used to create, develop, and produce essential products; some of these essential products include PPE and for the conception and testing of vaccines.

Due to these urgent COVID-19 needs, there has been an increase in demand for several of our ovens including our cabinet drying, high-temperature walk-in (with insulated floor), and inert gas walk-in ovens.

“We have been working around the clock to get these much-needed ovens produced,” states Mike Jameson with JPW. “Due to the time-sensitive nature of these requests, we adjusted schedules to create and deliver a quality product promptly, on time, every time.”

Jameson feels honored and privileged to have been and continue to be contacted by companies who require JPW’s ovens and furnaces to work through this national crisis.

He adds, “With vaccines becoming more and more readily available, there is finally a light at the end of the long, dark tunnel we have been walking through since last spring. JPW is grateful to be a part of the solution in the small way we can getting our lives back to some normalcy.”

JPW Industrial Ovens and Furnaces, based near Williamsport, Pa., makes lab, bench, walk-in, cabinet, conveyor, and custom-made industrial ovens for various industries, including aerospace, automotive, composites, heat treating, finishing, general manufacturing, and research. With more than 100 years of combined experience, JPW is skilled at crafting solutions to suit customers’ unique industrial oven needs. Our commitment to quality is a given. It is our unmatched customer service that sets us apart.

For more information, visit jpwdesign.com.
