Cabinet Ovens
JPW Industrial Cabinet Ovens

ST Series Industrial
Cabinet Ovens

These chambers are designed to meet your most demanding needs. Our precision engineering, heavy duty construction and exceptional performance along with a variety of airflow patterns and optional equipment provide the right solution for your heat processing requirements. Standard sizes range from 3.3 cuft up to 96 cuft and standard temperatures up to 650F. For chambers above 650F please inquire about our HT series cabinet ovens.


Standard Features:
  • UL Listed control enclosures
  • Designed to NFPA 86
  • TEFC motors (Totally enclosed fan cooled)- for harsh environments and long life
  • Controls- All digital, microprocessor, thermocouple input temperature controller
  • Circuit breakers on motor in lieu of fusing- Easy troubleshooting , no fuses required for motors
  • Oven on switch- Illuminated
  • Heat on switch- Illuminated
  • Batch Timer- Shuts heat off at the end of a timed cycle (on models with single set point controllers only)
  • SSR or SCR power controllers
  • High volume recirculation blowers or fans
  • Pressure differential switches- In the event of the loss of air the heating system will shut down
  • 8lb density mineral wool board insulation
  • Voltage specific (on all models 27 cuft and up only)
  • Aluminized interior (on all models 27 cuft and up only, the 3.3, 5.8 and 8 cuft models have stainless interiors)
  • Painted exterior
  • Incoloy sheathed heating elements
  • Silicone gaskets (on 500F models)
  • Ceramic cloth with stainless core (on 650F models)
  • Pressure relief latches (on 27 cuft and up models only)

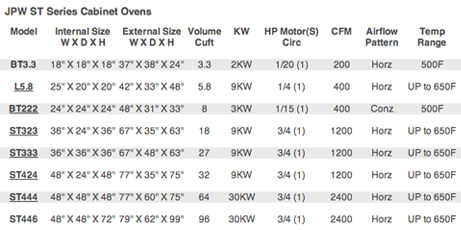

Cabinet Ovens Chart

Different airflow patterns will change the external size, external size is figured with a 14" dia control panel on the right side.
Optional KW available

Optional Features
  • Forced Exhaust packages
  • Gas fueled - natural or propane
  • Programmable controllers
  • Recorders
  • Solvent rated
  • Door switch
  • Shelves
  • Carts
  • Proportional dampers
  • Inert Gas purge & process
  • Viewing window
  • Interior light
  • Stainless interior
  • Stainless sealed interior
  • Wall ports
  • Cascade controlling (2 loops, typically one air and one product)
  • Class 1, Div 2
  • 24/7 timer
  • Audible/visual alarm indicators
  • Vertical lift door
  • Custom Designs


View Our Cabinet Ovens

Batch Ovens
Class 1; Div 1 or 2
Curing Ovens >
Drying Ovens >
Electrical Ovens >
Gas Ovens >
High Temp Ovens >
Inert Atmosphere Ovens >
Rollout Shelf Ovens >
Top Loading Ovens >
Vertical Lift Door Ovens >




Horizontal Air Flow Front View Combination Air Flow Front View

Download Airflow Diagram A >

Vertical Up Air Flow Front View Compound Horizontal Air Flow Top View

Download Airflow Diagram B >





Refine Search

Display: List / Grid
Show:
Sort By:
HT216
The oven is designed to operate at 1000°F maximum temperature and includes the following special ..
$0.00
Ex Tax: $0.00
HT333
JPW's line of industrial cabinet ovens offer performance at a cost effective price. Horizontal ai..
$0.00
Ex Tax: $0.00
HT333IG
The oven is designed to operate at 1200°F maximum temperature and includes the following special ..
$0.00
Ex Tax: $0.00
HT334VL
The oven is designed to operate at 1250°F maximum temperature and includes the following special ..
$0.00
Ex Tax: $0.00
HT433IG
The oven is designed to operate at 1200°F maximum temperature and includes the following special ..
$0.00
Ex Tax: $0.00
HT445
The oven is designed to operate at 1100°F maximum temperature and includes the following special ..
$0.00
Ex Tax: $0.00
HT464
The oven is designed to operate at 1000°F maximum temperature and includes the following special ..
$0.00
Ex Tax: $0.00
HT646
The oven is designed to operate at 1200°F maximum temperature and includes the following special ..
$0.00
Ex Tax: $0.00
L5.8
The oven is designed to operate at 650°F maximum temperature and includes the following special f..
$0.00
Ex Tax: $0.00
ST25TULEXH 480V 15KW
Contact JPW Industrial Ovens for all your Rollout Shelf industrial oven needs. Contact Us T..
$0.00
Ex Tax: $0.00
ST323A
JPW's line of industrial cabinet ovens offer performance at a cost effective price. Horizontal ai..
$0.00
Ex Tax: $0.00
ST333
JPW's line of industrial cabinet ovens offer performance at a cost effective price. Horizontal ai..
$0.00
Ex Tax: $0.00
ST333-4
The oven is designed to operate at 650°F maximum temperature and includes the following special f..
$0.00
Ex Tax: $0.00
ST333A
JPW's line of industrial cabinet ovens offer performance at a cost effective price. Horizontal ai..
$0.00
Ex Tax: $0.00
ST333GSR
The oven is designed to operate at 550°F maximum temperature and includes the following special f..
$0.00
Ex Tax: $0.00
